Payload Protection
Zenmuse S1 is equipped with multiple protection mechanisms for temperature, overcurrent, power, and more, enhancing the product's reliability and lifespan.
Burn Protection
Zenmuse S1 features a plastic casing with a contact surface temperature that does not exceed 50° C (122° F), [1] effectively preventing burn risks.
Efficient Remote Controller Shortcuts
Zenmuse V1 supports customizable shortcuts of the remote controller, allowing buttons to be set for brightness adjustment, turning the light on/off, or lighting mode changes. This makes operation convenient and intuitive, significantly enhancing the user experience.
Strong Environmental Adaptability
With an IP54 rating for dust and water resistance, Zenmuse S1 can operate in ambient temperatures ranging from -20° to 40° C (-4° to 104° F), making it adaptable to various operating environments.
Brightness Meets Energy Efficiency
Zenmuse S1 delivers a maximum central illuminance of 35 lux at 100 meters, providing ample lighting in dark environments to clearly distinguish details of the subjects. Additionally, the power consumption in the High Beam mode is only 17 W, reducing the power load on the drone and helping to maintain the flight time.
Eye Protection
When the drone is not in flight, Zenmuse S1 automatically dims the light to 40% of its maximum brightness to prevent glare and protect the operator's vision.
What's in the box
Contains:
1x Zenmuse S1
General Specifciations
Product Specifications

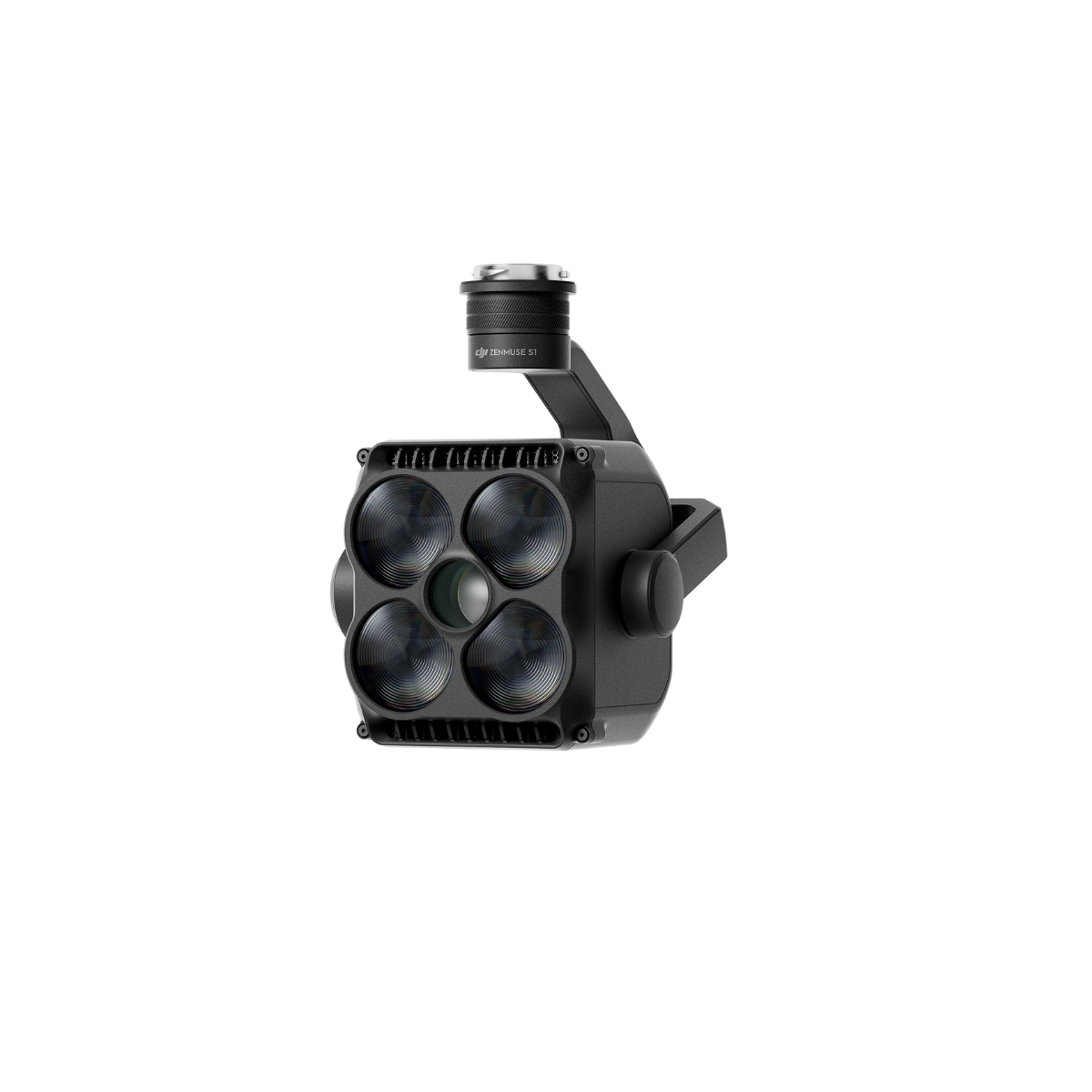

Product Name: Zenmuse S1
Weight: 760±10 g
Dimensions: 125×152×171 mm (L×W×H)
Rated Power: 68 W
Supported Aircraft: Matrice 300 RTK (requires DJI RC Plus)
Matrice 350 RTK
Eye Safety Class: IEC 62471: Risk Group 1
Shell Temperature: <50° C (122° F, plastic shell)
Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft.
Ingress Protection Rating: IP54
Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.
Operating Temperature: -20° to 40° C (-4° to 104° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
Stabilization System: 3-axis (tilt, roll, pan)
Angular Vibration Range: Hover: ±0.01°
Flight: ±0.02°
Mounting: Detachable DJI SKYPORT
Mechanical Range: Tilt: -129° to +73°
Roll: ±55.8°
Pan: ±327°
Structural limit, not controllable range.
Controllable Range: Tilt: -120° to +60°
Pan: ±320°
Operation Mode: Follow / Free / Re-center
Maximum Central Illuminance: 35 lux @100 m (Both On mode)
Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft.
Low Beam Central Illuminance: 13 lux @100 m (Low Beam mode)
Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft.
High Beam Central Illuminance: 30 lux @100 m (High Beam mode)
Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft
Effective Illumination Angle: 15±1° (10% relative illuminance, Low Beam mode and Both On mode)
4±0.5° (10% relative illuminance, High Beam mode)
Typical Color Temperature: 6500K typical value (Low Beam mode)
7500K typical value (High Beam mode)
Measured in a laboratory environment at an ambient temperature of 25° C (77° F) using an integrating sphere. Actual results may vary slightly due to different experimental conditions, and the final effect is subject to actual use.
Dimming Mode: Analog dimming
Effective Illumination Distance: 500 m (Both On mode)
Measured in a laboratory environment at an ambient temperature of 25° C (77° F). Actual conditions may vary slightly due to specific environmental humidity, weather conditions, and other factors. The final effect is subject to actual use.
Lighting Control: Turning light on/off, brightness adjustment
Strobe Mode: 5 Hz strobe
Lighting Mode: Low Beam mode, High Beam mode, Both On mode
Remote Controller Buttons: Can be set for turning the light on/off, brightness adjustment, or lighting mode changes
Gimbal Synchronization: Supports synchronized control with other gimbal-equipped payloads
Eye Protection: Automatically limits brightness to 40% when not in flight
Payload Protection: LED, LEP temperature protection, overcurrent protection, and power protection to prevent damage.
