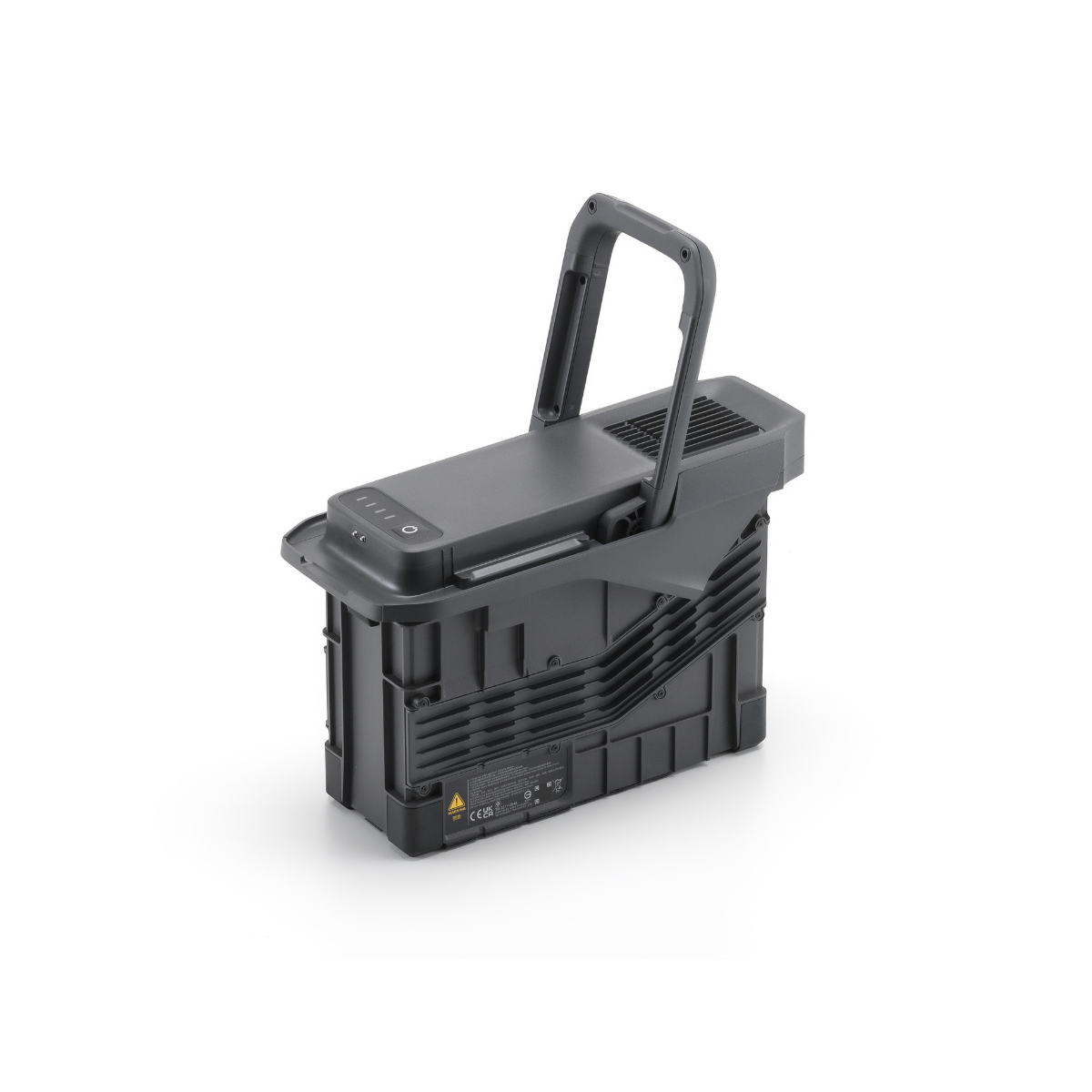

The TB100 is a high-capacity battery with a top-insert design and new handle for fast, secure mounting and removal. Designed for the DJI M400, it supports hot-swapping with built-in capacitors that maintain power for 45 seconds, preserving satellite connection for quick mission restarts without GPS reacquisition.
Key Features Include:
Up to 59 minutes of flight time
High-capacity battery (20,254 mAh).
Top-insert design allows for quick insertion and removal.
Li-ion 13S.
977 Wh energy.
400 cycles.
The M400 features built-in capacitors to maintain power for up to 45 seconds during battery replacement for core modules, enabling a rapid restart.
Upon restart, the drone retains satellite connection, allowing missions to resume quickly without reacquiring GPS.
In the Box:
TB100 battery × 1
Specs
Model: TB100
Capacity: 20254 mAh
Standard Voltage: 48.23 V
Max Charging Voltage: 54.6 V
Cell Type: Li-ion 13S
Energy: 977 Wh
Weight: 4720 ± 20 g
Charging Temperature: 5° to 45° C (41° to 113° F)
Discharging Temperature: -20° to 75° C (-4° to 122° F)
Battery Heating: Single Battery: Support
Onboard: Support
Battery Station: Support
Discharge Rate: 4C
Max Charging Power: 2C
Low-Temperature Charging: Supports low-temperature self-heating charging
Cycle Count: 400
