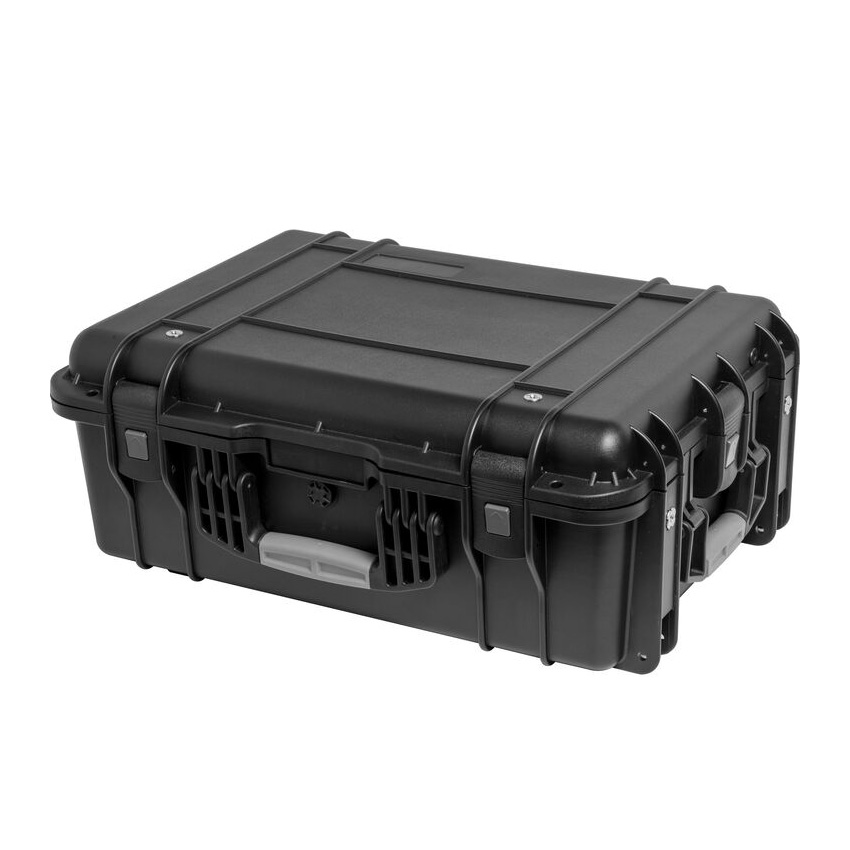

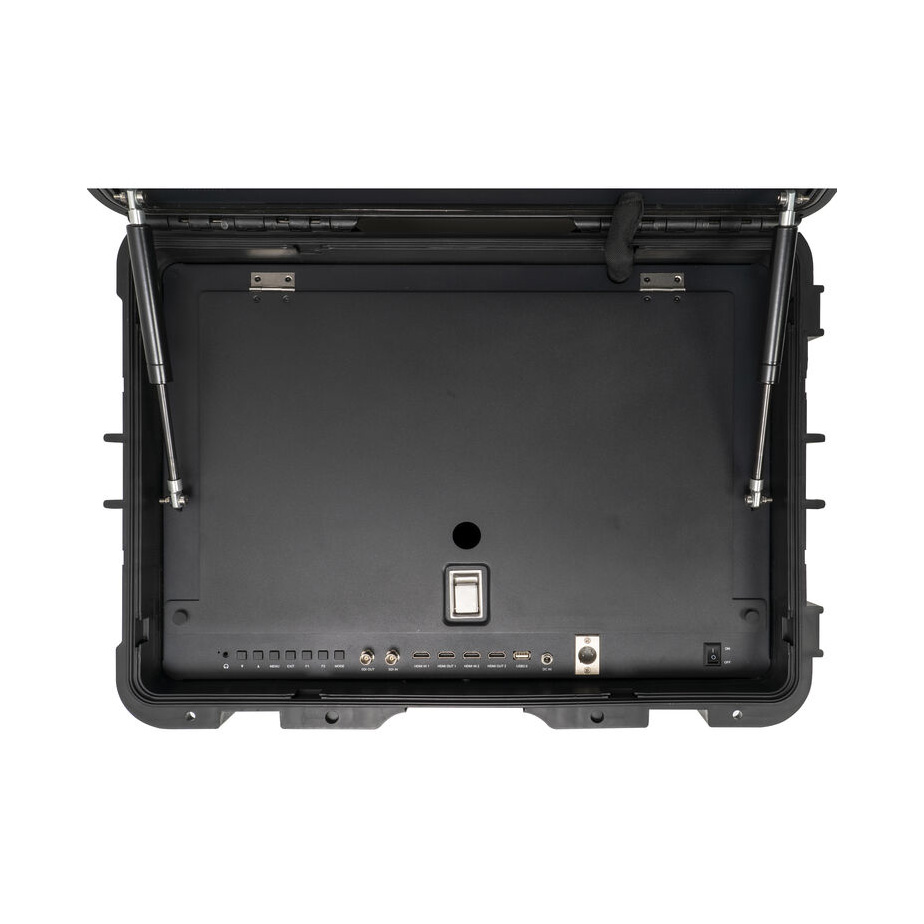

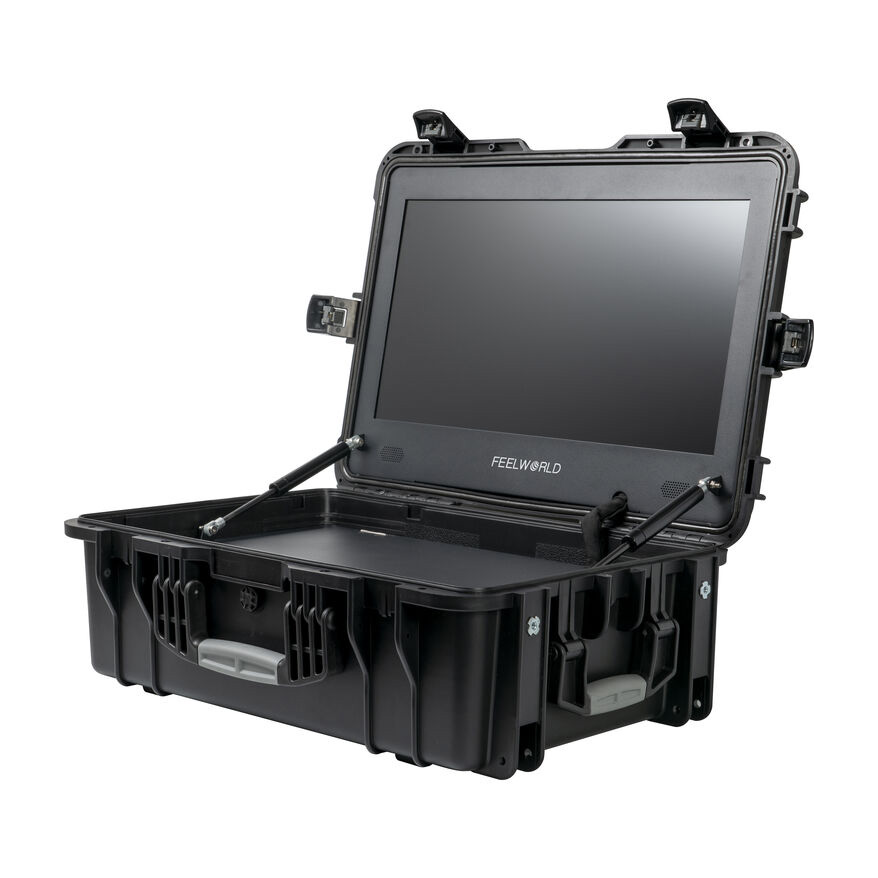

The 21.5″ 4K Broadcast Carry-On Director Monitor from FeelWorld features a maximum resolution of 1920 x 1080 and 1000 cd/m² brightness for viewing in any lighting conditions. The rear contains one 3G-SDI input and output and two HDMI inputs and outputs. The HDMI input supports up to DCI 4K video. The monitor is installed in a carry-on protective case, making it ideal for location use in drone, FPV, or field productions.

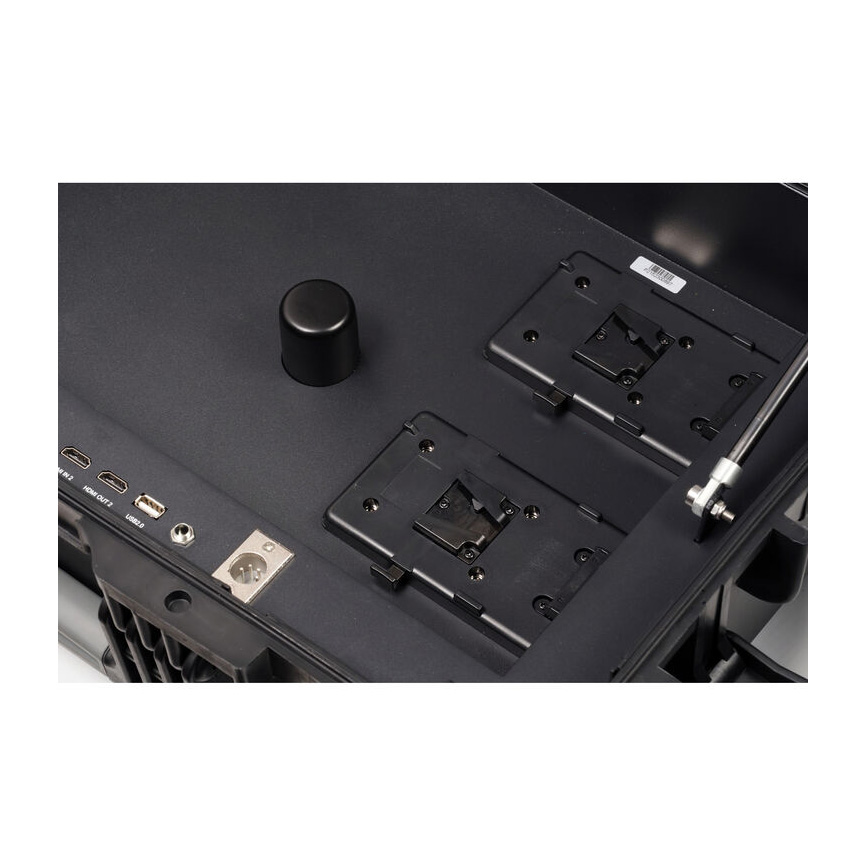

Professional monitoring tools such as waveform, histogram, focus assist, monochrome, and more are built-in for analyzing your video and ensuring a proper image. A V-mount battery plate is built into the back for powering in the field when you are away from a mains source.
Display Size – 21.5″ / 54.6 cm
Native Resolution – 1920 x 1080
Video I/O
2x HDMI Input
1x BNC (3G-SDI) Input
2x HDMI Output
1x BNC (3G-SDI) Output
Video Format
HDMI
– DCI 4K: 24
– UHD 4K: 30/29.97/25/24/23.98
– 1080p: 60/59.94/50/30/29.97/25/24/23.98
– 1080i: 60/59.94/50
– 720p: 60/59.94/50/30/29.97/25/24/23.98
– 576p
– 576i
– 480p
– 480i
SDI (8-Bit)
– 1080p: 60/59.94/50/30/29.97/25/24/23.98
– 1080i: 60/59.94/50
– 1080PsF: 24/23.98
– 720p: 60/59.94/50/30/29.97/25/24/23.98
Battery
1x V-Mount on Fixed Plate
Power Consumption – 32 W
Display
Panel Type – IPS-Type LCD
Display Size – 21.5″ / 54.6 cm
Native Resolution – 1920 x 1080
Aspect Ratio – 16:9
Viewing Angle – Horizontal: 178° (89/89) – Vertical: 178° (89/89)
Maximum Brightness – 1000 nits / cd/m2
Contrast Ratio – 1000:1
HDR Support – No
LUT Support – Yes
Image Controls
Anamorphic De-Squeeze, Blue Only, Check Field, False Color, Focus Assist, Focus Peaking, Green Only, Image Rotate, Red Only, Screen Markers, Screen Split – Half, Screen Split – Quarter
Inputs/Outputs
Video I/O
– 2x HDMI Input
– 1x BNC (3G-SDI) Input
– 2x HDMI Output
– 1x BNC (3G-SDI) Output
Embedded Audio – HDMI/SDI
Audio I/O – 1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker – Mono
Power I/O – 1x Barrel (12 VDC) Input
Other I/O – 1x USB-A 2.0 Input
Media/Memory Card Slot – No
