FEATURES
GO THE DISTANCE
Integrating DJI’s cutting-edge video transmission technology in a compact and lightweight body, the DJI O3 Air Unit takes your FPV experience to new heights. Enjoy excellent high-definition video transmission from extended distances with low latency. The O3 Air Unit takes a leap forward in imaging performance with its 1/1.7-inch sensor, 155° super-wide FOV, flagship video technology, and other upgrades. [1] It is also compatible with a wide range of products and delivers a video transmission solution that helps you to fully release your aerial creativity. [2]
POWERED BY FLAGSHIP VIDEO TRANSMISSION
Equipped with DJI O3+ Video Transmission, the DJI O3 Air Unit provides a host of powerful video transmission capabilities. Control your drone with snappy responsiveness and get a crisp, ultra-sharp live feed. The 2T2R omnidirectional antennas further ensure the stability and smoothness of video transmission within the signal coverage range.
SEEING IS BELIEVING

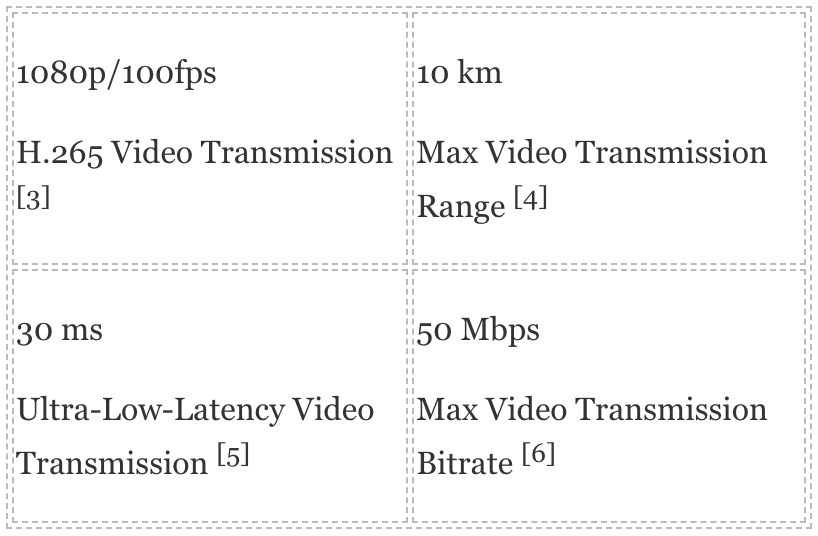

The DJI O3 Air Unit features a video transmission resolution of up to 1080p, while maintaining a high frame rate of 100 fps. It also supports the H.265 video coding format, presenting additional clarity and smoothness in your live view.
GO THE EXTRA MILE
Fly farther and explore more with the DJI O3 Air Unit’s extended 10km transmission range. It can even automatically select the frequency band to use the optimal signal, and it delivers excellent anti-interference performance. [7] The stable, long-range connection gives you peace of mind as you fly and lets you enjoy distant scenery in the palm of your hand.
LEVEL-UP YOUR VISUALS

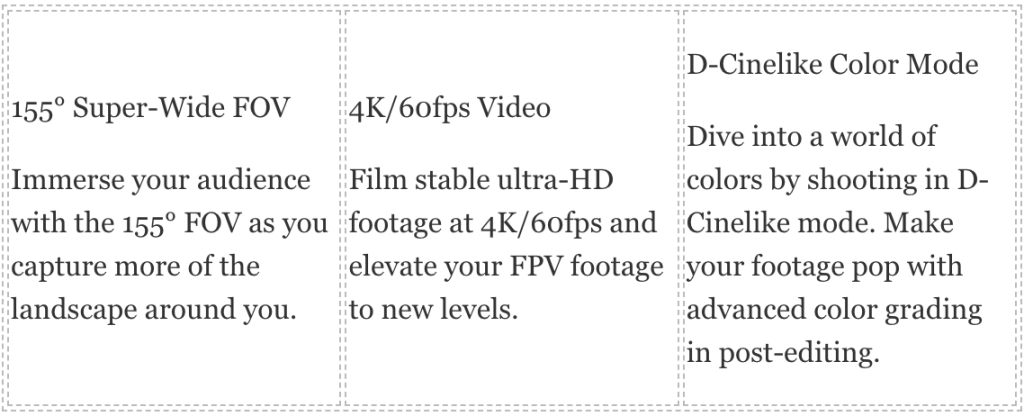

The DJI O3 Air Unit features upgraded imaging specs across the board. The air unit camera module is equipped with 20 GB of built-in storage as well as a 1/1.7-inch sensor to present richer details and high-quality imagery. It supports 4K/60fps video and shoots 155° super-wide FOV footage for stunning visual effects. [8] In addition, D-Cinelike color mode provides more creative freedom for color grading, allowing you to more flexibly edit and adjust your footage.
ELEVATE YOUR CREATIONS
The O3 Air Unit camera module can be used with the DJI Avata ND Filters Set (ND8/16/32). [9] Made of high-quality materials, the ND filters present true color details and light-dark contrast, providing flexible aperture control and exposure selection.
FINE TUNE YOUR EXPERIENCE
The DJI O3 Air Unit supports Canvas mode, allowing you to customize the on-screen display information of your DJI Goggles 2 or DJI FPV Goggles V2. Adjust the PID parameters and set up the system to suit your style.

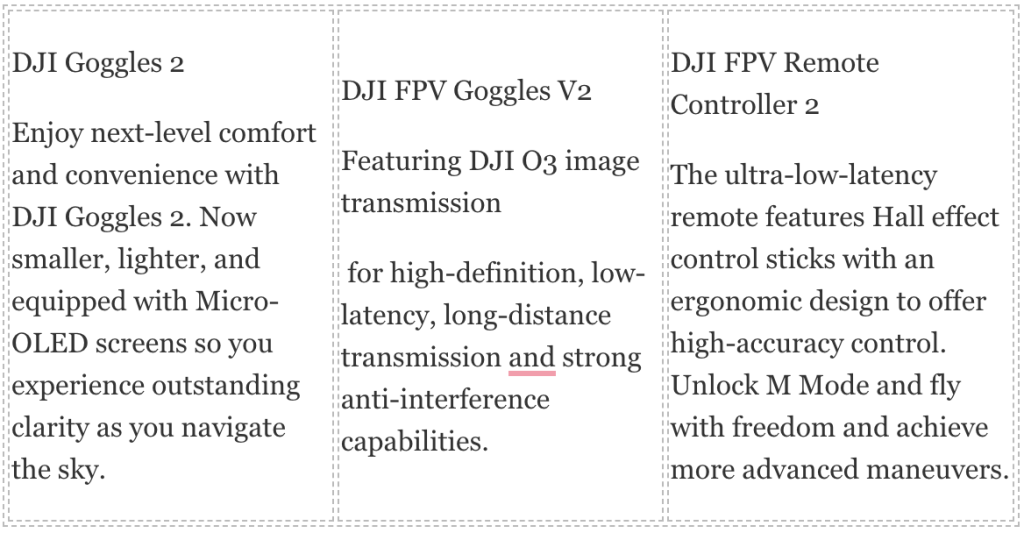

COMPATIBLE WITH MULTIPLE DJI DEVICES
PRODUCT SPECIFICATIONS
CAMERA
Sensor: 1/1.7-inch CMOS
Effective Pixels: 48 MP
Lens: FOV: 155°
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞
ISO Range: 100-6400 (Auto)
100-25600 (Manual)
Shutter: Rolling Shutter
FOV: 155°
Video Resolution: With DJI Goggles 2:
4K@50/60fps
2.7K@50/60/100fps
1080p@50/60/100fps
With DJI FPV Goggles V2:
4K@50/60fps
2.7K@50/60/100/120fps
1080p@50/60/100/120fps
Video Format: MP4
EIS: Supports RockSteady
Weight: Approx. 8.3 g (coaxial cable included)
AIR UNIT
Weight: Air Unit (camera module excluded): Approx. 28 g
Air Unit (camera module included): Approx. 36.4 g
Antenna: Approx. 3 g
Dimensions (L×W×H): Transmission Module: 32.5×30.5×14.5 mm (L×W×H)
Camera Module: 21.2×20×19.5 mm (L×W×H)
Coaxial Cable: 115 mm (length)
3-in-1 Cable: 100 mm (length)
Antenna: 85 mm (length)
Communication Frequency: 2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX) [1]
Transmission Power (EIRP): FCC: < 33 dBm
CE: < 14 dBm
SRRC: < 30 dBm
Live View Quality and End-to-End Latency [2]: With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Range [3]: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Supported Flight Controller Firmware: Compatible with flight controller firmware that supports Betaflight. For more information, check the product FAQ.
Input Voltage: 7.4-26.4 V
Operating Temperature: -10º to 40º C (14° to 104° F)
Channels: Supports auto mode
Supports manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels
Channels Info: FCC/SRRC/CE:
40 MHz:
Channel 1: 5794.5 MHz
20 MHz/10 MHz:
Channel 1: 5768.5 MHz
Channel 2: 5804.5 MHz
Channel 3: 5839.5 MHz
Supported SD Cards: microSD (up to 256 GB)
Recommended microSD Cards: SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus U3 V30 A2 256GB microSDXC
Supported DJI Goggles: DJI Goggles 2 and DJI FPV Goggles V2
Supported DJI Remote Controller: DJI FPV Remote Controller 2
IN THE BOX
DJI O3 Air Unit Camera Module × 1
DJI O3 Air Unit Transmission Module × 1
DJI O3 Air Unit Antenna × 1
DJI O3 Air Unit 3-in-1 Cable × 1
