DJI's first variable aperture action camera
Osmo Action 6 breaks with the traditional fixed aperture mode, with a variable aperture range covering f/2.0[1]-f/4.0. Adapted aperture mode can be selected according to the diverse scene shooting needs[1].
OsmoAudio™ Dual Microphone Direct[2]
DJI OsmoAudio™ ecosystem supports direct connection to 2 DJI microphones[2], high quality audio without a receiver.
Low temperature resistance & 4 hours of extra long battery life[3]
It can be shot stably in an environment of -20℃ to 45℃. Whether it is cold or hot, you can create with peace of mind and say goodbye to battery life anxiety.[9]
50GB built-in storage
Built-in 50GB of storage space, you can take photos at will even if you forget to bring your storage card.
New 1/1.1 inch Square Sensor
The new 1/1.1 inch square sensor supports up to 4K/120fps 4:3 ultra-clear recording. Both dark light and large light ratio scenes can present clear and sharp pictures with vivid light and darkness.
All-New 4K FreeFrame Cropping
Thanks to DJI’s custom square sensor, Osmo Action 6 introduces a new 4K FreeFrame Cropping mode, allowing you to shoot first and crop later. Multiple aspect ratios can be freely cropped, giving you greater flexibility and creative freedom.
Multi-Mode Stabilization
Super Stabilization 3.0 has your back, with HorizonSteady providing top-tier stabilization and supporting up to 4K/60fps recording. Your footage stays steady and shake-free, letting you easily capture every dynamic moment.
20-Meter Waterproofing (Without Case)
Osmo Action 6 is waterproof down to 20 meters without a case. With an added waterproof housing, it can handle dives up to 60 meters. Combined with its built-in color temperature sensor and professional depth gauge, it accurately reproduces true colors underwater and records essential data.
In the box:
DJI Osmo Action 6 x 1
DJI Osmo Action Extreme Battery Plus (1950 mAh) x 3
Osmo Multifunctional Battery Case 3 x 1
DJI Osmo Dual-Direction Quick-Release Adapter x 1
DJI Osmo Action Curved Adhesive Base x 1
USB-C to USB-C PD Cable x 1
DJI Osmo Locking Screw x 1
DJI Osmo 1.5m Extension Rod X 1
DJI Osmo Action Anti-Slip Pad x 1
DJI Logo Sticker x 1
Quick Start Guide x 1
Disclaimer x 1
Warranty Card x 1
Specifications
General
Dimensions
72.8 × 47.2 × 33.1 mm
Waterproofing
Bare camera: 20 m
With waterproof case: 60 m
Microphones
3 (stereo recording)
Weight
149 g
Mounting Method
Dual-direction quick-release design

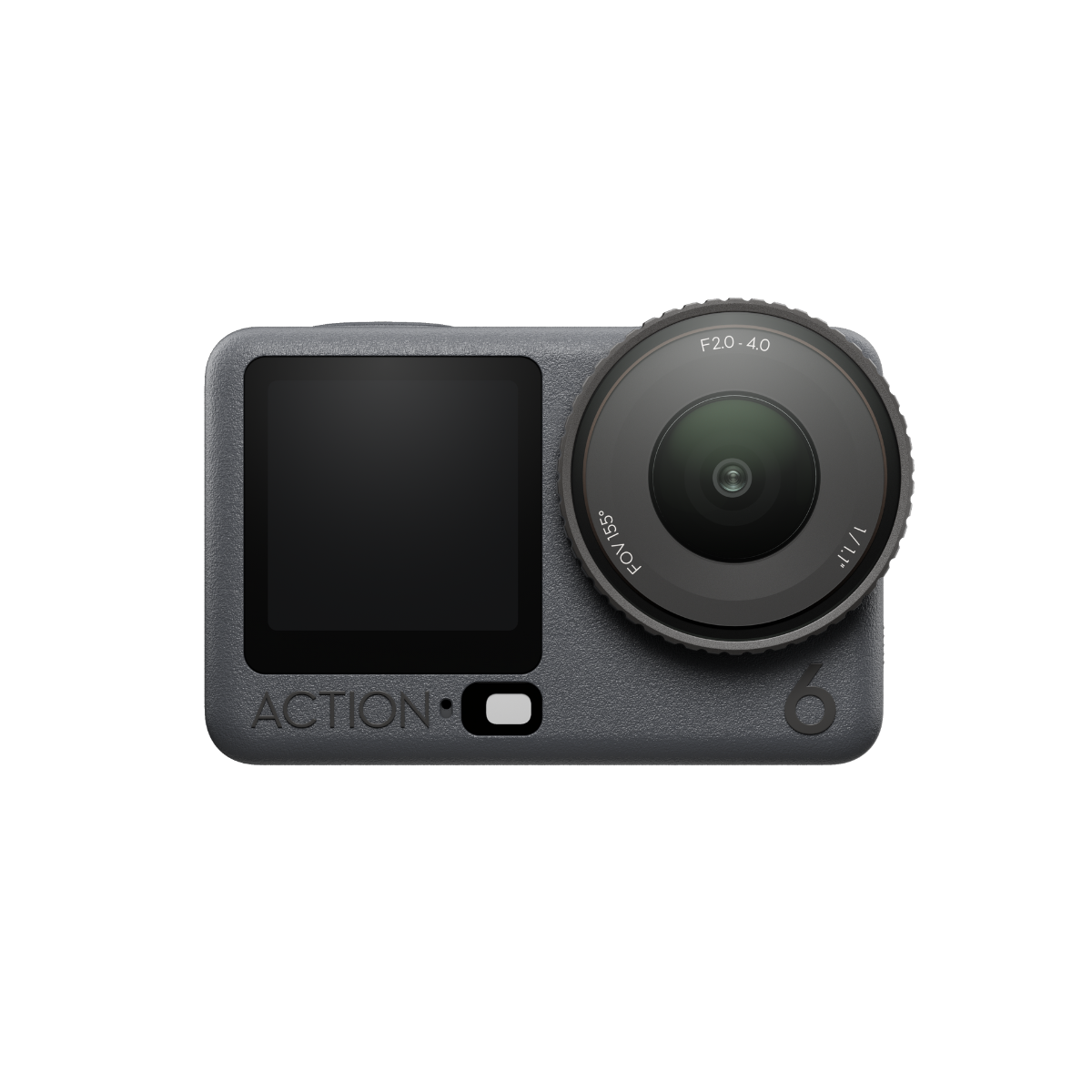

Front Display
OLED touchscreen
1.46 in, 331 ppi, 342 × 342
800 cd/m² max brightness (typical)

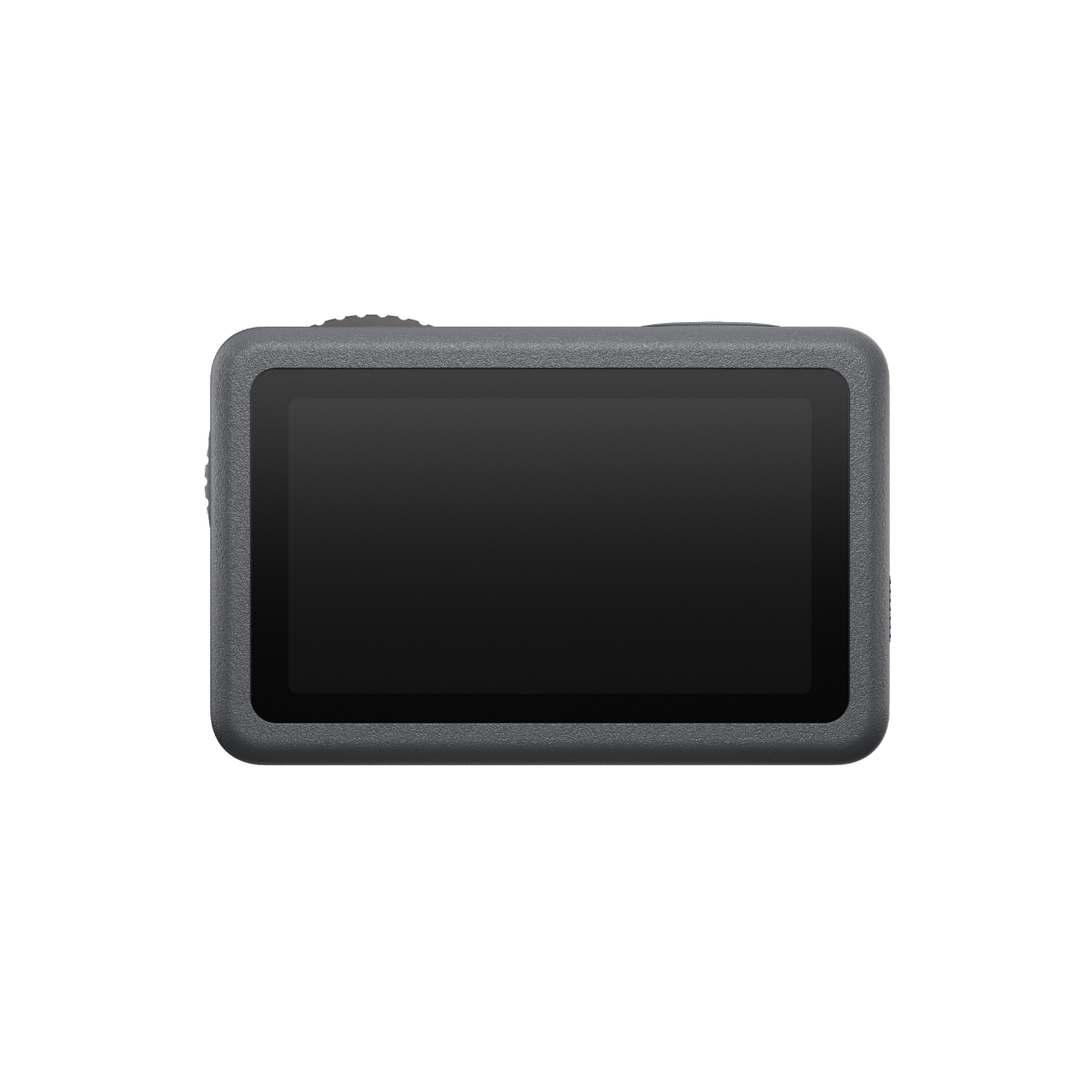

Rear Display
OLED touchscreen
2.5 in, 326 ppi, 400 × 712
800 cd/m² max brightness (typical), 1000 cd/m² peak brightness
Camera
Image Sensor
1/1.1″ CMOS
Lens
FOV: 155°
Aperture: f/2.0–f/4.0
Focus range: At f/4.0, 0.2 m to infinity
ISO Range
Photo: 100–25600
Video: 100–51200
* ISO 51200 available only in Super Night mode; other video modes max at 25600.
Electronic Shutter Speed
Photo: 1/8000–30 s
Video: 1/8000 to frame-rate–limited shutter
Photo Modes
Countdown: off / 0.5 / 1 / 2 / 3 / 5 / 10 s
Burst: up to 30 frames in 3 seconds
Standard Video Recording
4K FreeFrame: 3840×3840 @ 24/25/30/48/50/60fps
4K (4:3): 3840×2880 @ 100/120fps
4K (4:3): 3840×2880 @ 24/25/30/48/50/60fps
4K (16:9): 3840×2160 @ 100/120fps
4K (16:9): 3840×2160 @ 24/25/30/48/50/60fps
4K (9:16): 2160×3840 @ 100/120fps
4K (9:16): 2160×3840 @ 24/25/30/48/50/60fps
2.7K (4:3): 2688×2016 @ 100/120fps
2.7K (4:3): 2688×2016 @ 24/25/30/48/50/60fps
2.7K (16:9): 2688×1512 @ 100/120fps
2.7K (16:9): 2688×1512 @ 24/25/30/48/50/60fps
2.7K (9:16): 1512×2688 @ 100/120fps
2.7K (9:16): 1512×2688 @ 24/25/30/48/50/60fps
1080p (16:9): 1920×1080 @ 100/120/200/240fps
1080p (16:9): 1920×1080 @ 24/25/30/48/50/60fps
1080p (9:16): 1080×1920 @ 100/120/200/240fps
1080p (9:16): 1080×1920 @ 24/25/30/48/50/60fps
Super Night Mode
4K (16:9): 24/25/30/48/50/60fps
2.7K (16:9): 24/25/30/48/50/60fps
1080p (16:9): 24/25/30/48/50/60fps
Subject Tracking
None
Slow Motion Recording
4K: 4× (120fps)
2.7K: 4× (120fps)
1080p: 8× (240fps), 4× (120fps)
Timelapse
Motion Timelapse (4K/2.7K/1080p @ 25/30fps): Auto / ×2 / ×5 / ×10 / ×15 / ×30
Static Timelapse: 4K/2.7K/1080p @ 25/30fps
Intervals: 0.5–40 sec; 1/2/5/30/60 min
Duration: 5/10/20/30 min; 1/2/3/5 hr; ∞
Stabilization
Electronic stabilization:
• RockSteady 3.0
• RockSteady 3.0+
• HorizonBalancing
• HorizonSteady
Static timelapse & slow motion do not support EIS.
HorizonSteady + HorizonBalancing support up to 4K ≤60fps (including 4K FreeFrame).
Max Video Bitrate
120 Mbps
File System Support
exFAT
Photo Format
JPEG / RAW
Video Format
MP4 (HEVC)
Supported Memory Cards
microSD (up to 1 TB)
Built-In Storage
50 GB
Audio Recording
48 kHz, 16-bit, AAC
Battery
Type
Li-ion 1S
Capacity
1950 mAh
Energy
7.5 Wh
Voltage
3.87 V
Operating Temperature
–20°C to 45°C
Operating Time
240 minutes
(1080p/24fps, RockSteady+ ON, Wi-Fi off, screen off; lab-tested)
Fast Charging
Yes
Charging Time
≈ 52 minutes
(with 30W+ PD 3.0 charger, lab-tested)
Connectivity
Wi-Fi Frequency
2.400–2.4835 GHz
5.150–5.250 GHz
5.725–5.850 GHz
Wi-Fi Protocol
802.11 a/b/g/n/ac/ax
Bluetooth Frequency
2.400–2.4835 GHz
Bluetooth Protocol
BLE 5.1
Disclaimer
In Auto mode, users can choose from five aperture ranges (f/2.0–f/4.0, f/2.2–f/4.0, f/2.4–f/4.0, f/2.6–f/4.0, f/2.8–f/4.0). The default aperture range is f/2.0–f/4.0. In the Large Aperture F2 mode, the aperture is fixed at f/2.0. Aperture options may be limited depending on the shooting mode and accessories used. For details, refer to the FAQ section on the Osmo Action 6 official website.
Requires connection to two DJI microphones (first-generation DJI Mic is not supported). DJI microphones are sold separately.
Tested at a room temperature of 25°C, recording 1080p/24fps (16:9) video with RockSteady+ enabled, Wi-Fi off, voice control off, gesture control off, and screen off. Data comes from DJI labs and is for reference only. When activating and using Osmo Action 6 in the EU and UK, the runtime may differ from the data shown here due to local regulations on device operating temperatures. Please refer to your actual usage experience.
Timelapse (static) and Slow Motion modes on Osmo Action 6 do not support electronic stabilization. HorizonSteady and HorizonBalancing support 1080p/2.7K/4K video in 16:9 (≤ 60fps) as well as 4K FreeFrame Cropping video (≤ 60fps).
Before use, ensure the battery compartment cover and USB-C port cover are firmly closed, and tighten the lens protective cover. For prolonged underwater shooting or environments with strong water pressure, it is recommended to use the waterproof housing. Osmo Action 6 and its waterproof housing have passed IP68 waterproof tests under standards GB/T 4208-2017 and IEC 60529-2013. Do not use the product in extreme water environments or unknown liquids. Avoid using it in hot springs or corrosive liquids. Button protection will be triggered when water pressure reaches approximately 0.14 MPa (around 14 meters depth). Actual trigger depth may vary depending on water quality, air pressure, and device condition.
The depth-gauge feature is triggered starting at 1 meter and only functions when the camera is submerged without a housing.
Gesture control works within a 2-meter range using either hand. Do not block your face with your hand. Raise your hand and open your palm to start/stop recording or to take photos. Actual effective distance may vary with firmware updates.
It is recommended to use the “Starburst” aperture mode in urban night scenes with brightness above 80 lux.
Under laboratory conditions at –20°C and 45°C, with RockSteady+ enabled, Wi-Fi off, recording 1080p/24fps (16:9) video, and with the screen off, the camera can record continuously for up to 167 minutes and 190 minutes respectively. Data is from DJI labs and for reference only.
Subject Tracking mode is only supported when shooting in landscape orientation. It supports up to 2.7K/60fps in both 16:9 and 9:16 aspect ratios. Subject Tracking is not supported when the Osmo Action 6 Macro Lens is installed.
