Features

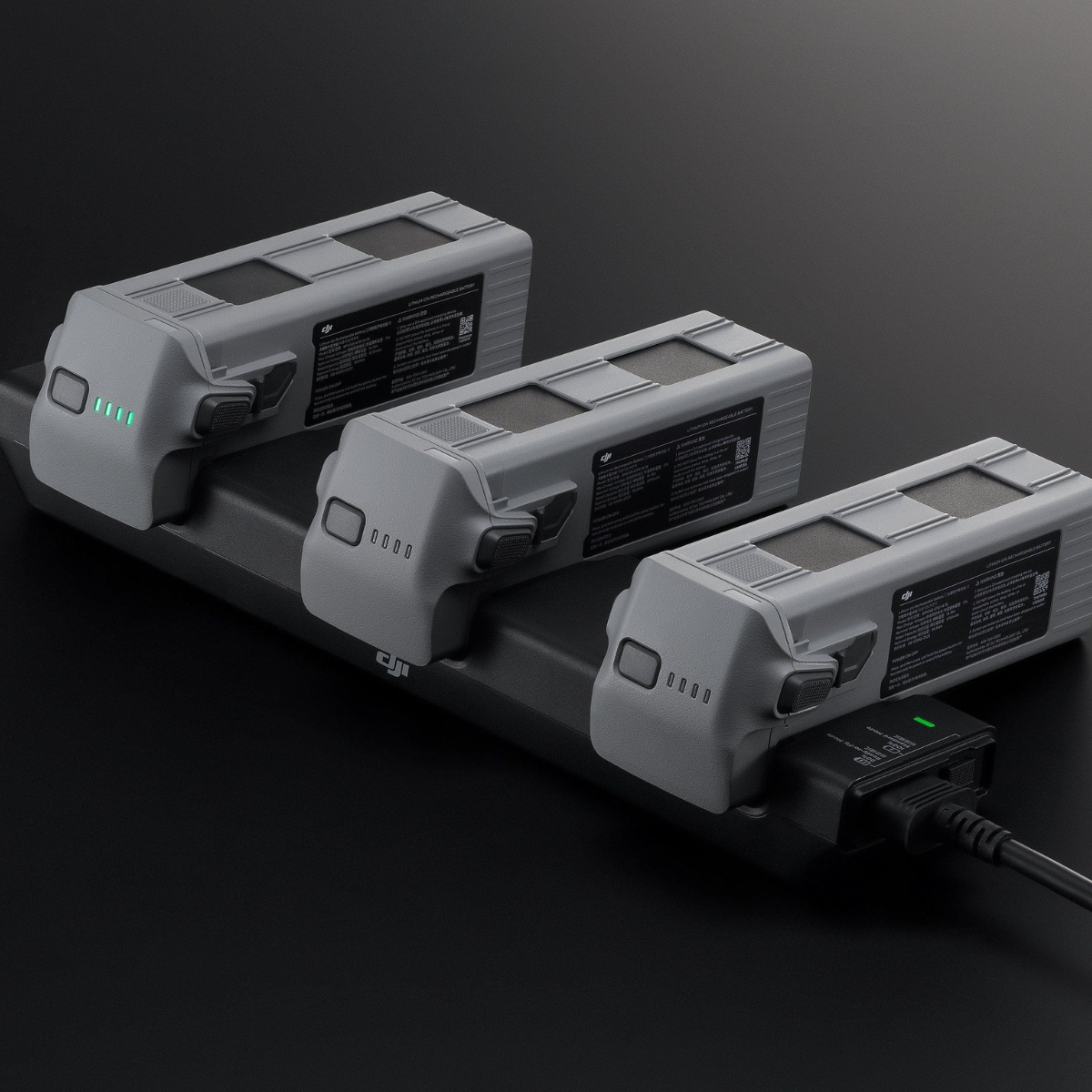

DJI Matrice 4 Series Charging Hub (200W) can pair with DJI 240W Portable Charger (model: CDX230-240) or Power 1000 to charge up to three Intelligent Flight Batteries in sequence from high to low power levels. The charging hub supports both Standard Mode and Ready-to-Fly Mode. Standard Mode charges each battery to 100% sequentially. Ready-to-Fly Mode charges each battery to 90% sequentially and maintains that level for quick deployment.
Tips
1. The DJI 240W Portable Charger (model: CDX230-240) is required when using the charging hub to charge Intelligent Flight Batteries.
2. The charging hub is only compatible with the DJI Matrice 4 Series Intelligent Flight Battery. DO NOT use the charging hub with other battery models.
3. Place the charging hub on a flat and stable surface when in use. Make sure the device is properly insulated to prevent fire hazards.
4. DO NOT attempt to touch the metal terminals on the battery ports. Clean the metal terminals on the battery case with a clean, dry cloth if there is any noticeable buildup.
5. The DJI Matrice 4 Series Charging Hub (200W) is not sold in certain countries or regions. Please contact your local dealer for more information.
In the box
Charging Hub × 1
SDC Fast Charge Cable × 1
Compatibility
DJI Matrice 4 Series
